R5 Eco Design Stove

  • Dealer Price
  • Regular price £795.00
Including VAT 20%

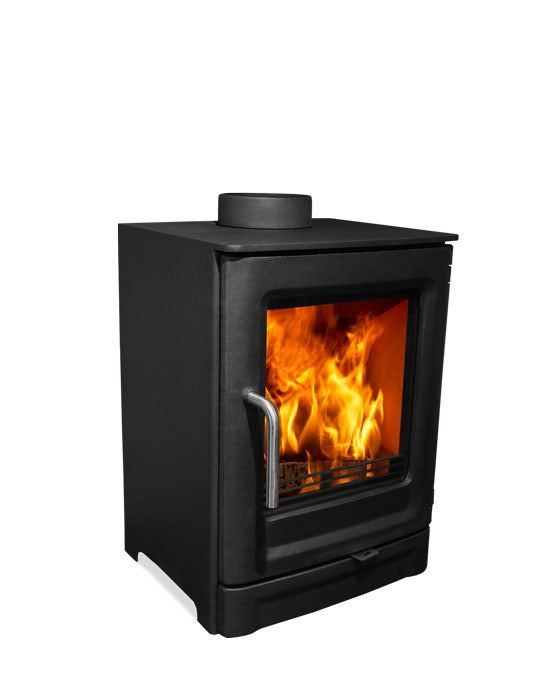

Hi-Flame R5 Ecodesign Stove

The R5 is the medium size Ecodesign Ready Stove in Hi-Flame's new family of stoves.



Specification

Model name

 5

Nominal heat output to room(kw)

 5

Efficiency(%)

 83

Dimension(H*W*D)(mm)

 528*387*348

Flue outlet

 5in/125mm

Glass size(mm)

 283*313

Combustion chamber/ firebox size(mm)

 329*215*270

Maximum log length(mm)

 305

Maximum Fuel Load(KG)

 1.8

Ecodesign Energy Efficiency Rate

 A+

Mean CO emission (vol%)

 0.08

Gross weight(kg)

 68

Net weight(kg)

 57.4

































Drawing

R5 Dimensions



Documents



ERP Label R5

ERP Data R5

ERP Fiche R5

EcoDesign 2022 Test Results

Dimensions
