Hi-Flame Brogan 5kW Eco Stove

  • Dealer Price
  • Regular price £995.00
Including VAT 20%

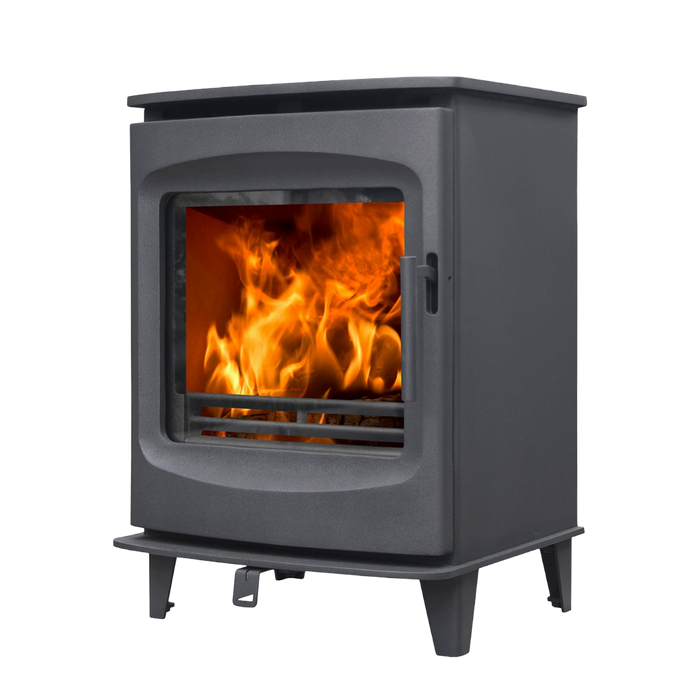

Hi-Flame Brogan 5kW Eco Stove

The Brogan is Hi-Flame’s newest Ecodesign stove and is based upon its best selling 905 series wood burning engine for guaranteed excellent performance and supreme reliability and, as you’d expect from a modern stove, the Brogan features an especially large glass area to view the flame patterns. This is beautifully set within a timeless fine cast iron door. The Brogan comes in three variations with standard short leg and high leg options as well as a striking 720mm high seamless store stand version for added presence.

The Hi-Flame Brogan has an A-rated efficiency of 76.2% and delivers a nominal, and very controllable 5kW heat output, whilst producing minimal harmful emissions. With a Hi-Flame stove there’s no compromising on the quality of materials they use either. For example the standard leg version weighs in at around 91kg (that’s about 15.5 stone) which is significantly heavier than most comparable 5kW stoves. Compare the thickness of the Brogan’s premium steel bodywork too and see exactly why it’s so heavy and why it also makes a great slow release heat sink after the fire has gone out.

The Brogan also features a highly efficient airwash system and this, combined with its heavy duty cast iron rear fire chamber back brick which houses the tertiary air jets, helps retain heat to keep the fire chamber much hotter and the glass much cleaner, even at the end of the burn cycle. There’s a single drop-down baffle that not only makes cleaning the Brogan’s flueway really simple but will also allow the flue system to be easily swept through the stove. This offers another distinct advantage over a typical Ecodesign 2-baffle system by minimising smoke spillage when refuelling, especially when a chimney or flue is not performing at its best. This makes the Brogan a highly dependable ‘plug and play’ heating solution for most homes.

There are two separate primary boost and secondary combustion air controls for quicker starting fires and to precisely manage the Brogan’s heat output and fuel economy. An integral direct external air supply manifold is incorporated as standard to enable installation in post-2008 homes without the need to fit a draughty open vent’ to the outside air in your living space. You can also install the Brogan on an appropriate non-combustible 12mm thick decorative hearth. To sum up then the Brogan is a stylish ultra low emissions wood burner that not only represents wonderful value for money but also excellent user-friendly performance.


• Suitable for 12mm hearths, adhering to Building Regulations • Accommodates logs up to 250mm (10") in size • Pre-2008 homes can use the stove without an air brick (subject to Building Regs) • Clean-burn pre-heated tertiary air system maximizes efficiency • Pre-heated Airwash System keeps the glass cleaner for longer • Adjustable feet for uneven hearths, ensuring stability • User-friendly clamp-tight stay-cool door handle • Offers top or rear 125mm (5") flue options for flexible installation • Robot-welded premium thick steel bodywork, including a 10mm thick lid, for outstanding durability • Longer lasting finest quality cast iron door and tertiary air back-plate • Comes with a Five-Year Extended Warranty from one of the world's leading stove-makers

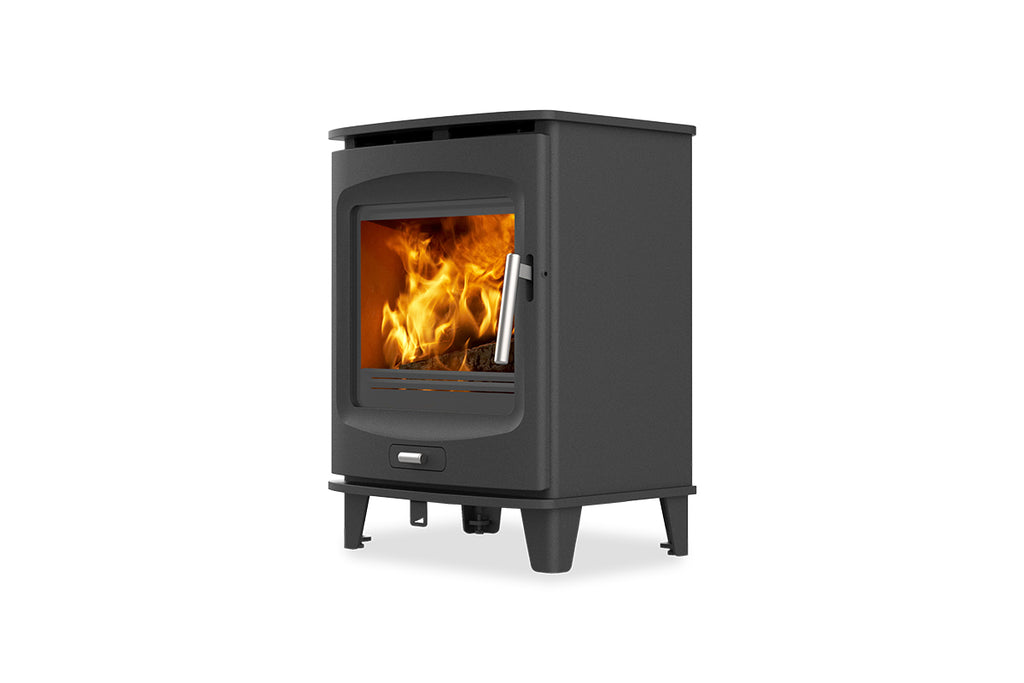

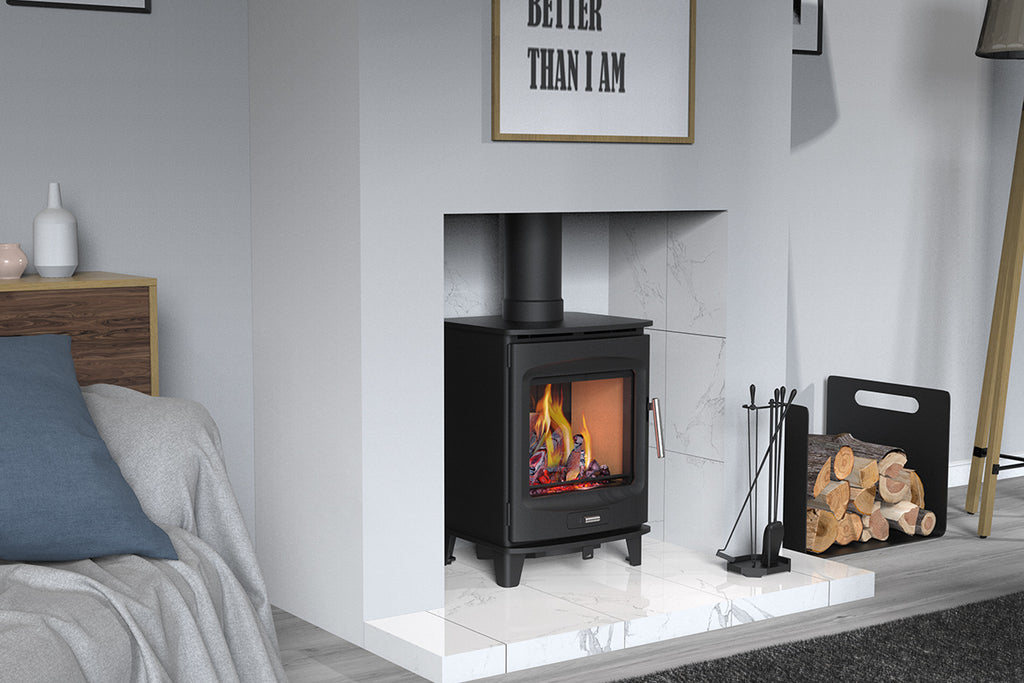

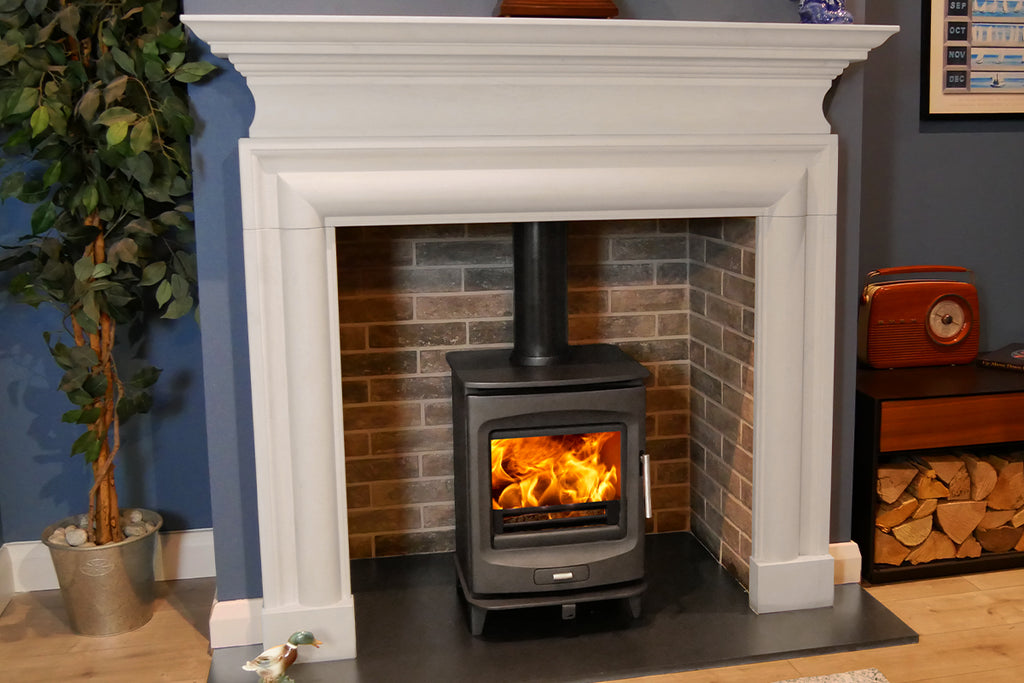

  • Standard Leg Option

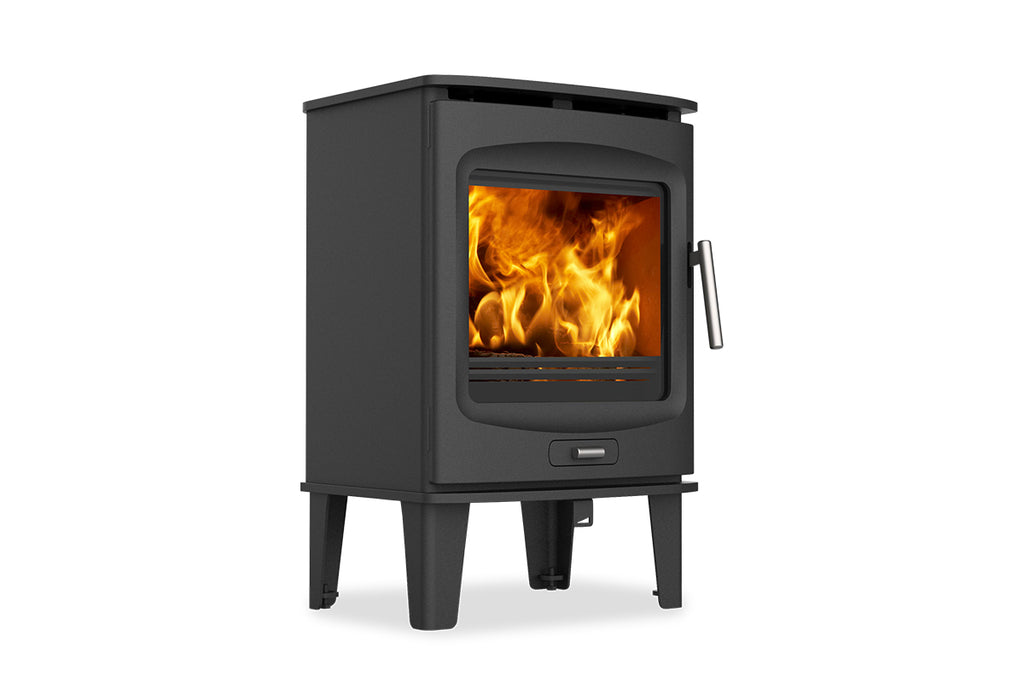

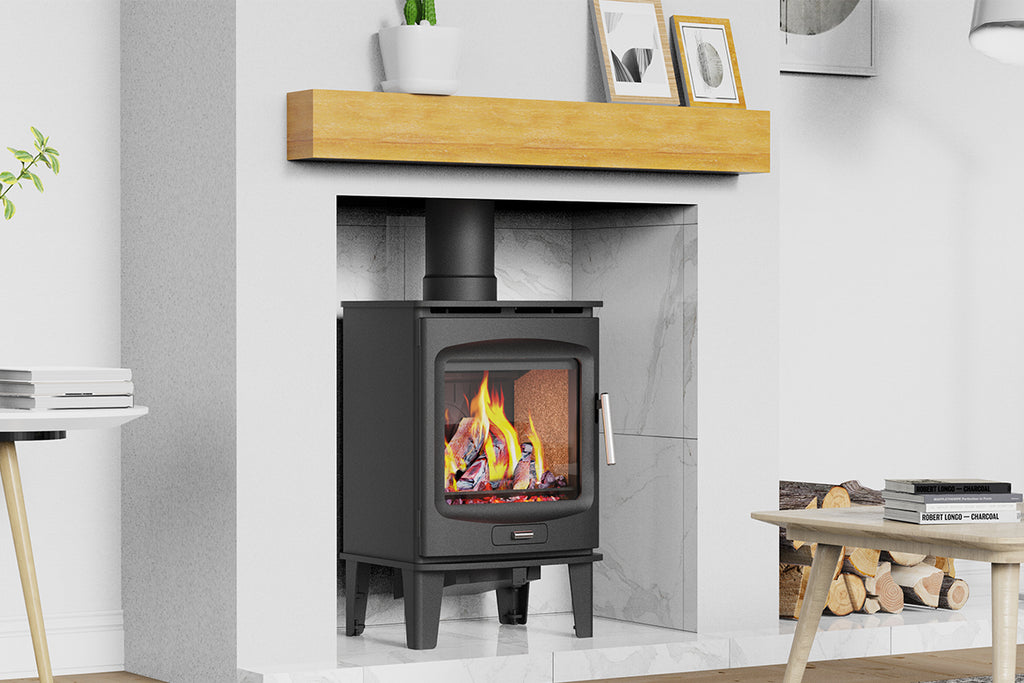

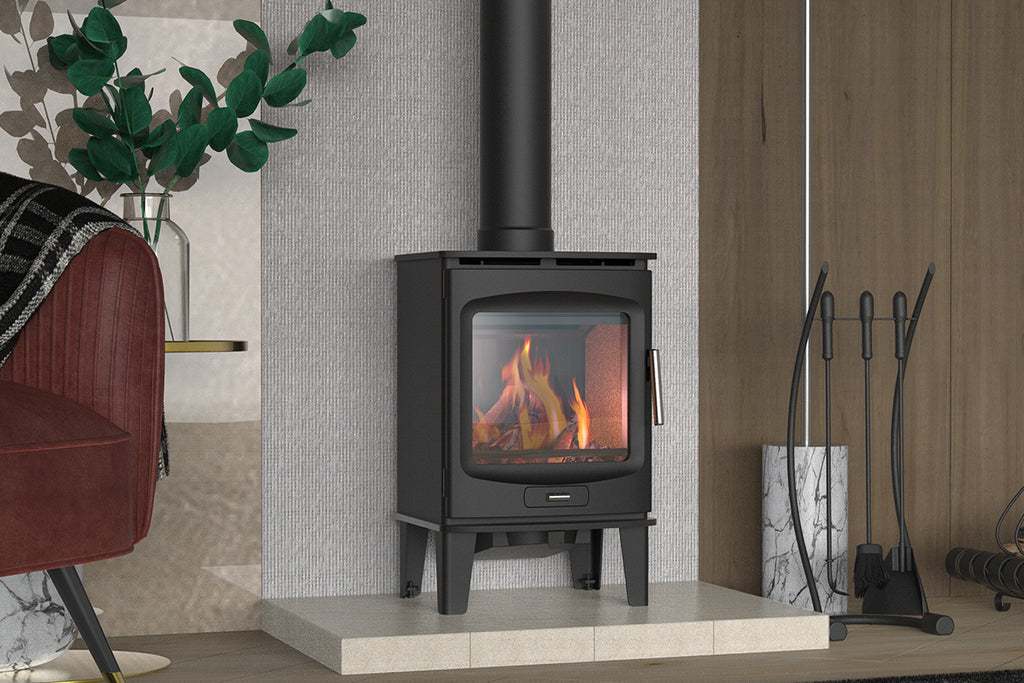

  • Long Leg Option

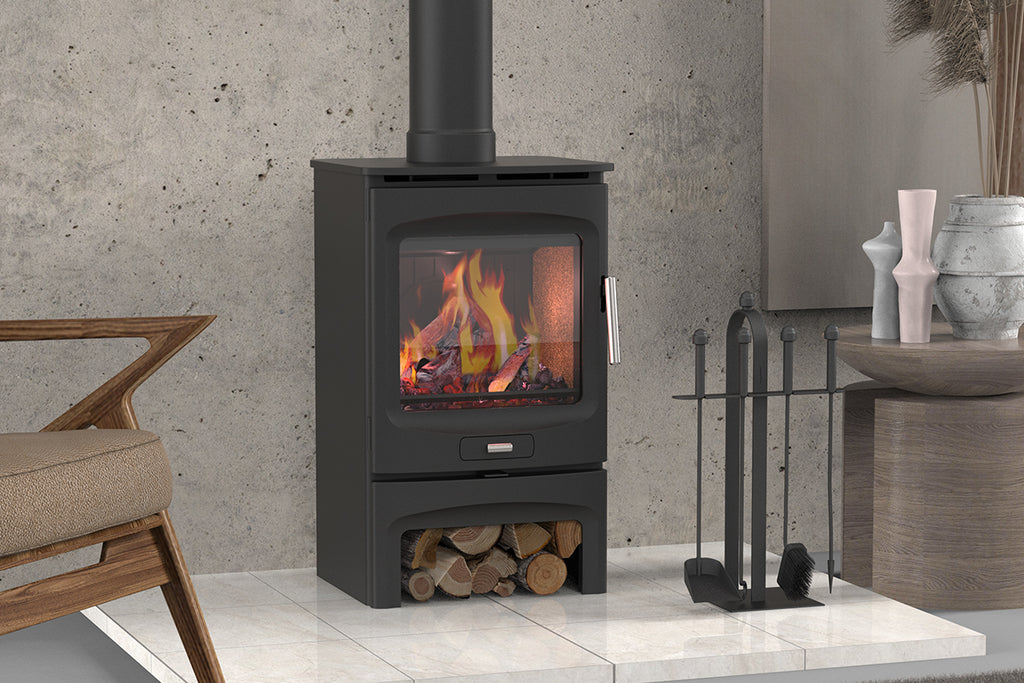

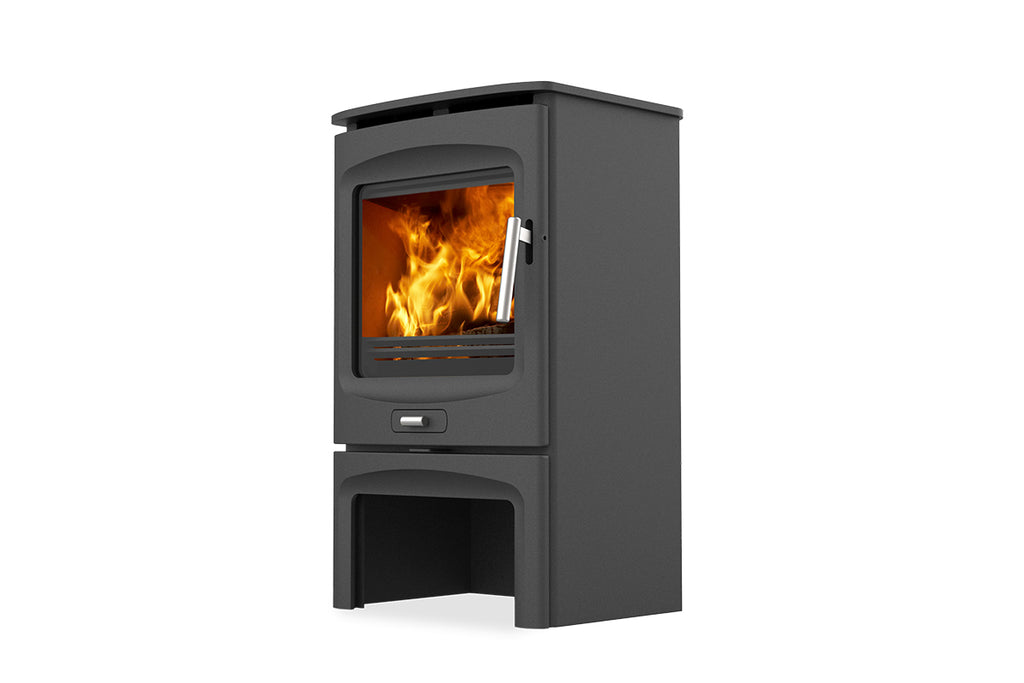

  • Logstore Option

In conclusion, the Hi-Flame Brogan 5kW Ecodesign Stove stands as an extraordinary choice, combining elegance, efficiency, and advanced features to enhance your heating experience.

Parameter Details
Heat output nominal 5.0kW
Efficiency 76.20%
ErP Energy Rating A Wood
Defra Approved 905 Engine DEFRA approved on HF / AL / GR - WF pending
Fuel Seasoned wood and approved smokeless coal
Airwash Yes
Air Controls Two push-pull primary air and secondary air slider
Construction Cast iron door, fire grate and back fire chamber back panel; Premium quality plate steel bodywork
Flue Outlet Top or rear
Flue Diameter 125mm /  5"
Grate Type Cast iron multi fuel grate with separate ash pan
Guarantee 5 Years
Maximum Log Length 250mm (approx 10")
Standard Colour Matt Black
Optional Finishes None
Options Standard short leg (WF905-SL), 65mm taller High Leg (WF905-HL) and 720mm high Integral Store Stand (WF905-LS)
Weight Standard Leg 91kg /  High Leg 92kg / Store Stand 99kg
Air Vent Required Not usually in pre-2008 homes. Alternatively use the Brogan's direct external supply capability
Suitable for 12mm hearth Yes
Direct External Air Inlet (DEAS) Yes 75mm dia inlet
Overall Dimensions mm Standard H582/ High Leg H647  Store H720  W420  D363
Combustible Distances mm Sides 700  Rear 900


Hi-Flame Brogan 5kW Eco Stove Stand Leg Dimensions

Hi-Flame Brogan 5kW Eco Stove Long Leg Dimensions

Hi-Flame Brogan 5kW Eco Stove Log Store Dimensions
